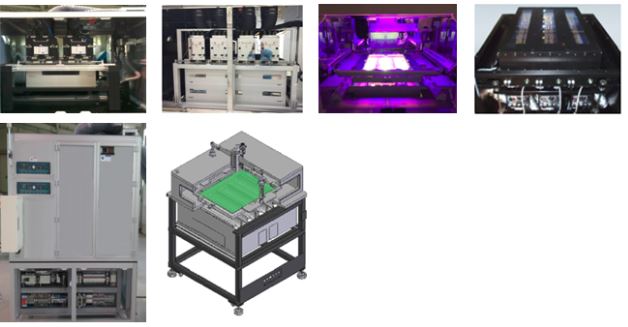

UV curing system for LCD Seal & OLED Encap or ORC/ OCA

Features Be installing high intensity UV metal lamp, it is possible to manufacture high quality product
with constant UV uniformity for wide area and high power UV intensity
Application LCD Seal UV curing and OLED Encap or OCR/OCA UV curing system.

Item Specification Remark
Model UCU-
L4737SL84-M2		 UCU-
L4737SL84-M2		 UCU-
L4737SL84-M2		 UCU-
L4737SL84-M2
Curing Area 470 x 370mm 1250 x 1100mm 470 x 370mm 920 x 730mm L x W
UV Lamp 8.4kW Lamp 2EA 24.3kW Lamp 4EA 15.6kW Lamp 1EA 12.8kW Lamp 3EA
Wave length 365nm 365nm 365nm 365nm High Pressure Metal
Irradiation Direction

Top-Down 300mm scan

 Top-Down Down - Top Down - Top
UV intensity 100mW/cm2 200mW/cm2 130mW/cm2 100mW/cm2
UV Uniformity ≤±5% ≤±20% ≤±15% ≤±20% User condition
Lamp Load 130W/cm 200W/cm 240W/cm 160W/cm Integration energy
Lamp Life time ≥2000Hr ≥1500Hr ≥1500Hr ≥1000Hr
Dimension 1500x1800x2200
mm		 2200x2200x3350
mm		 1100x1500x2200
mm		 2200x2200x3350
mm		 L x W x H
Weight 200kg 550kg 200kg 350kg
Exhaust Type Normal Blower Exhaust Normal Blower Exhaust
Optics CM &ND Complex Filter & BPF
Lamp House Single Type - Total Light Shield
Control PLC & Automatic UV intensity Feed Back
Power Supply 3Phase. 220V. 50/60Hz, 30kW 3Phase.440V. 60HZ.150kW 3Phase.220V. 50/60Hz.35kW 2Phase.380V. 60HZ.45kW

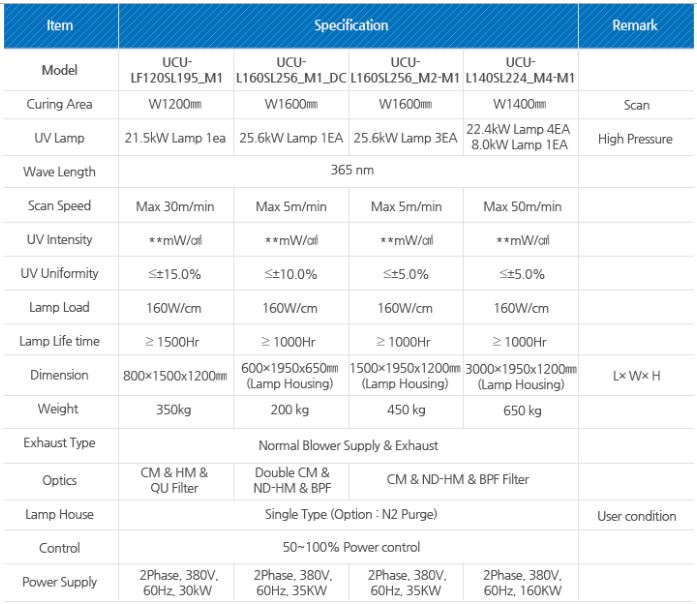

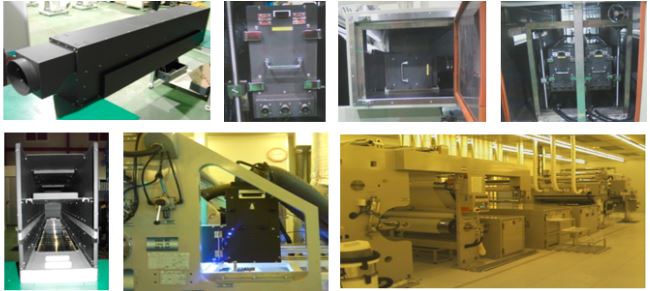

UV curing system for display optical film & retro-reflection

Features   After forming of micro mold or nano imprinting on the film (wide width 1,400mm above).
   It provides high productivity and UV uniformity(+_5% less) from pre UV curingand mainUV curing . It can be applied to the high quality of optical film for display and related items. Nitrogen (N2) purge function is avaible.
Application    Optical film (lens sheet prism sheet,light guide film) for display, UV irradiation or curing for retro- reflection film.

UV curing system for display film back coating

Model : Curing Area, UV Lamp, Wave Length, Scan Speed, UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Lamp House, Control, Power Supply

    UV curing system                                 UV system for detaching wafer          for lead frame                                 dicing protection tape

Model : Curing Area, UV Lamp, Wave Length, Scan Speed[Irradiation type], UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Control, Power Supply

UV Conveyor system

Model : Curing Area, UV Lamp, Wave Length, Scan Speed, UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Belt Type, Control, Power Supply

Mini UV curing & irradiation system for LAB

Model : Curing Area, UV Lamp, Irradiation, Direction, Wave Length, UV Intensity, Lamp Load, Lamp Life time, Dimension, Weight, Shutter, Optics, Control, Power Supply

Portable UV curing system (Perfect U+ series)

▪ Features

             - UV Curing system for photoreaction
             - Portable, light weight and wide range of applications

▪ Application

             - Portable and simplicity work
             - Experiment for LAB
             - Wood coating, Tub and tile coating and bonding

Model : Curing Area, UV Lamp, Lamp House, Head Size, Power Size,Head Weight, Power Weight, Control, Power Supply
