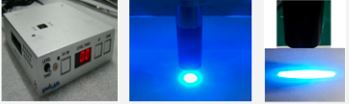

UV-LED Spot Curing & Irradiation Device

CH1  Type CH4 Type


 ▪ UV -LED Spot Application ▪ UV - LED Spot Features
* UV curing or exposure system * Lifetime more than 20,000hrs
* Easy to install with compact size and by commercial power use * No additional cooling system required
* As it is very light weight and portable,
it can be applied to various usage.
* Expandable UV channel ( up to 10 channels)
* Replacement light source instead of high pressure mercury lamp * Cost - effective maintance when compared
to  UV lamp
* Both industrial and commercial use available

UV-LED Line Beam Curing

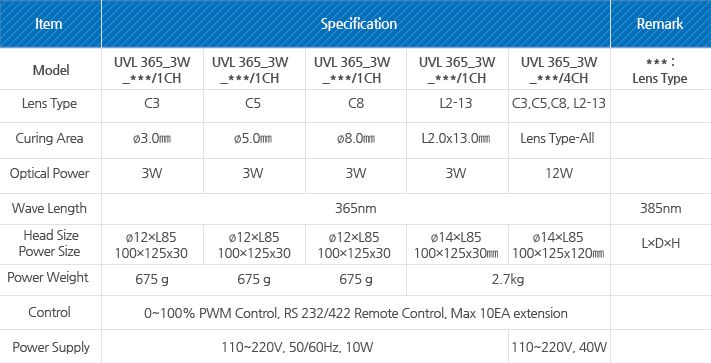

Model : Lens Type, Curing Area, Optical Power, Wave Length, Head Size / ower Size, Head Weight / Power Weight, Control, Power Supply
